2023 Other Crusher - Impact I-120RS
Fields with asterisks * are required.
Print This Page
Description
IMPACT CRUSHER
Inventory ID
E00064054
Serial
TRX120RSCOMNC0465
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00064054
- Status: On Rent
- Make: Other
- Model: I-120RS
- Year: 2023
- Serial#: TRX120RSCOMNC0465
Notes

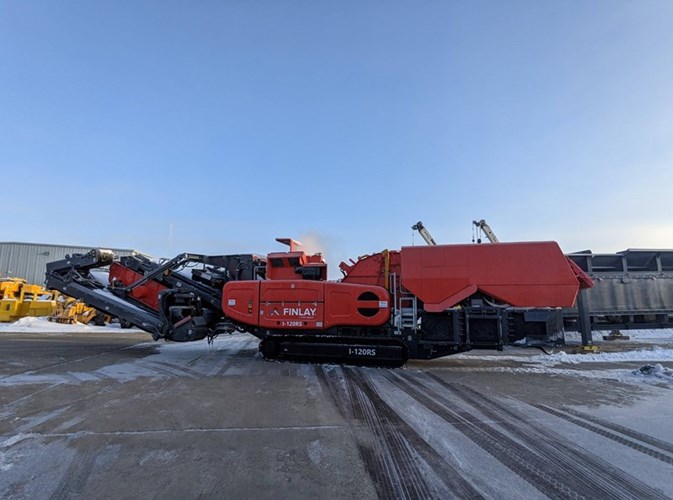

- NEW RENTAL FINLAY I-120RS TRACKED IMPACTOR PLANT EQUIPPED PER THE BELOW:
- ENGINE:
- TIER 4 FINAL/STAGE IV: SCANIA DC9 257 KW (350 HP) ENGINE
IMPACT CHAMBER:
- TEREX CR028 IMPACT CHAMBER
- FULLY HYDRAULICALLY ASSISTED APRON SETTING AND HYDRAULIC APRON RELEASE
- MANUAL RAISE CHAMBER FLAP ALLOWING EXTRA INLET CLEARANCE
- 4 BAR ROTOR - MARTENSITIC CERAMIC BLOW BARS 2 HIGH AND 2 LOW
- DIRECT DRIVE VIA CLUTCH
- DRIVE BELT TENSIONER WHEEL
- BLOW BAR LIFTING TOOL SUPPLIED
- DRIVE PULLEY TO SUIT HIGHER SPEED RANGE
- SMALLER ENGINE CHAMBER DRIVE PULLEY FITTED TO GIVE LOWER SPEED RANGE. STANDARD
LARGE PULLEY STILL DISPATCHED WITH THE MACHINE - HOPPER & FEEDER:
- VGF FIXED HOPPER
- STEPPED GRIZZLY FEEDER WITH INTEGRAL PRE-SCREEN STANDARD 63MM SPACING
- MESH APERTURE ON GRIZZLY FEEDER: 38MM
- SELECTABLE DISCHARGE TO BY-PASS CONVEYOR OR MAIN CONVEYOR
- BLANKING MAT FOR VGF - INDEPENDENT PRE-SCREEN:
- INDEPENDENT PRE-SCREEN C/W HYDRAULICALLY FOLDING AND LOCKING HOPPER AND
BLANKING MATT. 63MM CASSETTE SPACING & 38MM MESH AS STANDARD - MESH APERTURES
AVAILABLE UPON REQUEST
- INDEPENDENT PRE-SCREEN HOPPER EXTENSIONS - MAIN CONVEYOR:
- 1100MM (43.3") BELT FULL LENGTH
- UNDER CRUSHER VIBRATORYFEEDER WITH WEAR RESISTANT STAINLESS STEEL LINERS (C/W
SHORTENED MAIN CONVEYOR) - AUXILIARY:
- HYDRAULIC RAISE/LOWER FOR MAGNET - CONVEYORS:
- PIPED FOR OVER BAND MAGNET
- BYPASS CONVEYOR WITH 650MM WIDE PLAIN BELT DISCHARGING TO THE RHSOF THE
MACHINE
- TWIN POLE OVER BAND MAGNET C/W STAINLESS STEEL SKIRTING & STAINLESS STEEL
DISCHARGE CHUTE DISCHARGING TO RHS OF THE MACHINE - RS COMPONENTS:
- 3.663 X 1.52M (5- X 12 2-DECK SCREEN)- CLOTH NOT INCLUDED
- 500MM (20") WIDE BELT SINGLE TRANSFER CONVEYOR COLLECTING MATERIAL FROM BOTH
DECKS
- 500MM (20") WIDE BELT HYDRAULIC FOLDING RE-CIRCULATING CONVEYOR ABLE TO SLEW
FOR STOCKPILING OVERSIZE MATERIAL
- 1400MM (55") WIDE BELT FINES CONVEYOR
- RAPID DETACH AFTER SCREEN SYSTEM FOR FLEXIBILITY
- BELT WEIGHER BELT SCALE INSTALLED
- ADDITIONAL TRANSFER & STOCKPILE CONVEYOR FOR COLLECTING MATERIAL FROM EACH
INDIVIDUAL DECK OF SCREEN BOX GIVING MIDDLE GRADE PRODUCT - CLIMATE SPEC:
- STANDARDOILS (RECOMMENDED FOR AMBIENT TEMPERATURES BETWEEN -5 TO +30 DEG. C)
DUST SUPPRESSION:
- PIPED FOR DUST SUPPRESSION C/W SPRAY BARS - ELECTRICAL:
- EMERGENCY STOPS
- HAND HELD TRACK CONTROL SET WITH CONNECTION LEAD
- T-LINK TELEMETRY SYSTEMFITTED C/W 7 YEAR DATA SUBSCRIPTION
- RADIO REMOTE SYSTEM: OPERATIONAL CONTROLS OF MACHINE (AUTO START/STOP) & TRACK
MOVEMENT
- PRESSURIZED AIR SYSTEM FOR ELECTRICAL CONTROL CABINET - ENGINE SWAPPED OUT AT 1186 HOURS ENGINE HAS 421 HOURSAS OF 6/12/25
- GUARDING:
- GUARDING: FOR DRIVE AND TAIL PULLEYS GUARDS MAY NOT MEET ALL LOCAL CODES;
CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED.
